Database schema for integrating ontologies in the Platform AI

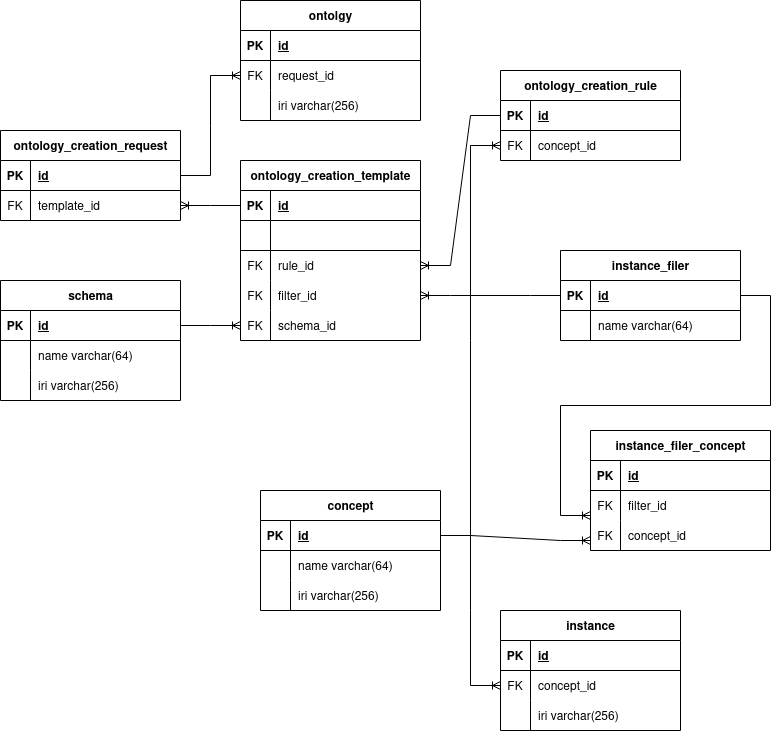

Simplified version of DB schema covering use case

Rule - When instances of a particular concept were saved associated with particular component(document for instance)

Filter - Filter instances of a particular concept and associated with particular component

Request - Request an ontology creation by using the selected instances and configured schema

Note:

During the implementation we will clarify the predefined ontology creation templates with rules, filters and schemas, so in real life we will have more complex filters and rules.

Note:

This also will work when we will expose an api and the ontology creation requests will be created directly by user, now filters are being taken from ontology creation templates.

Database schema
